| Description | CPU | GPU |
| Model Number: K8AMD Type: Cooling Fan |
Ryzen 5 7640HS, 6 C/12 T, 16 MB L3 Smart Cache, Frequency: 4.30GHz-5.0GHz; Ryzen 7 8845HS, 8 C/16 T, 16 MB L3 Smart Cache, Frequency: 3.80GHz-5.1GHz. |
Ryzen 7 7640HS: AMD Radeon 760M Graphics, Frequency: 1.0GHz-2.8GHz; Ryzen 7 8845HS: AMD Radeon 780M Graphics, Frequency: 800 MHz-2.7GHz. |
| RAM Memory | SSD Storage | Network |
| 2 x DDR5 SO-DIMM slots, max 64GB | 2 x M.2 2280 NVMe PCIe4.0/3.0*4 SSD slots | Dual RJ45 Intel i226-V 2.5G network ports |
| Input/output port | Power Supply | Wi-Fi |

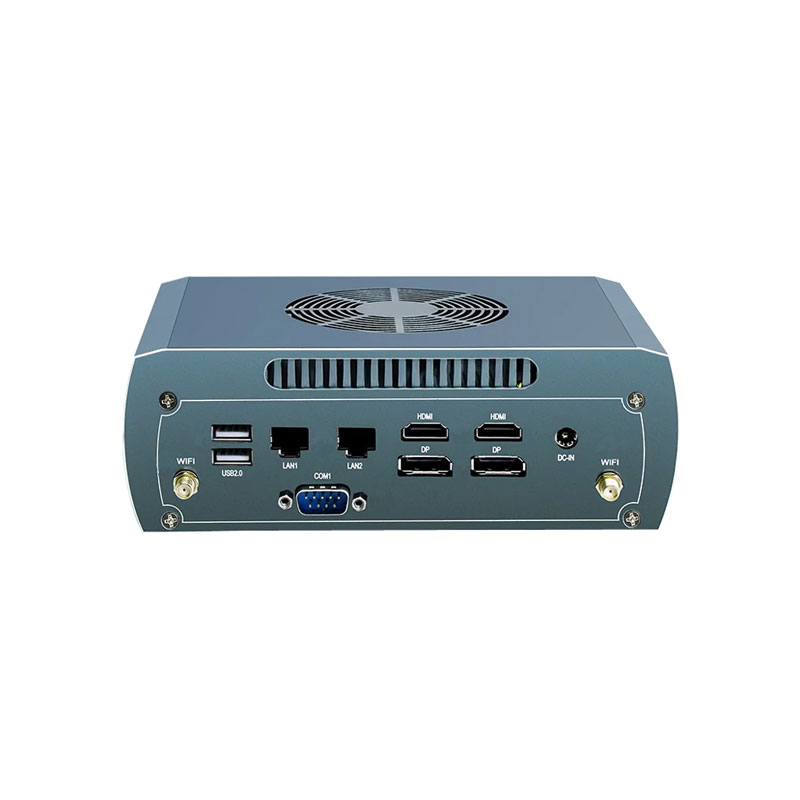

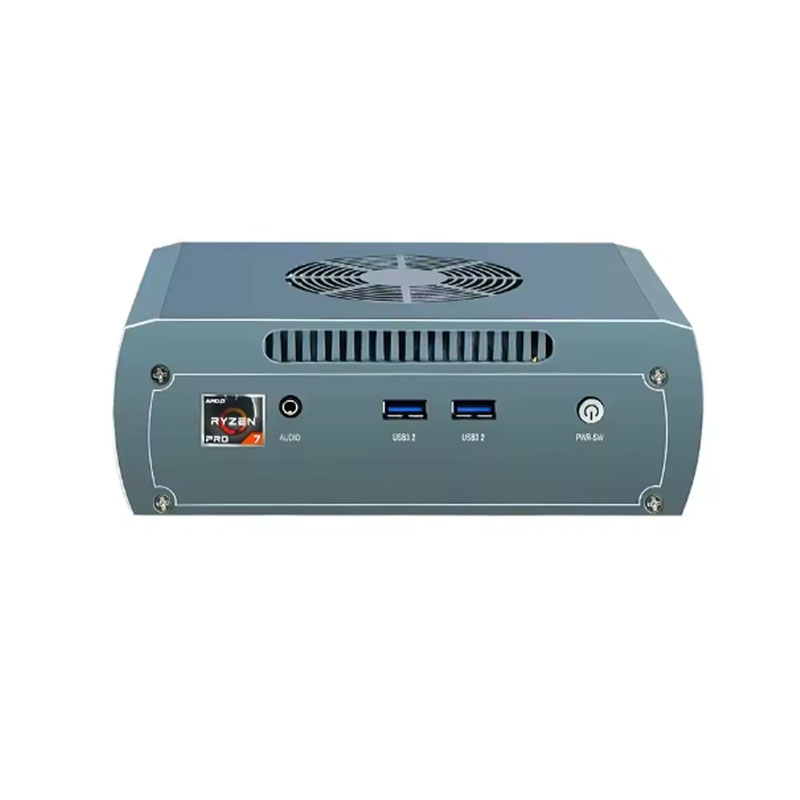

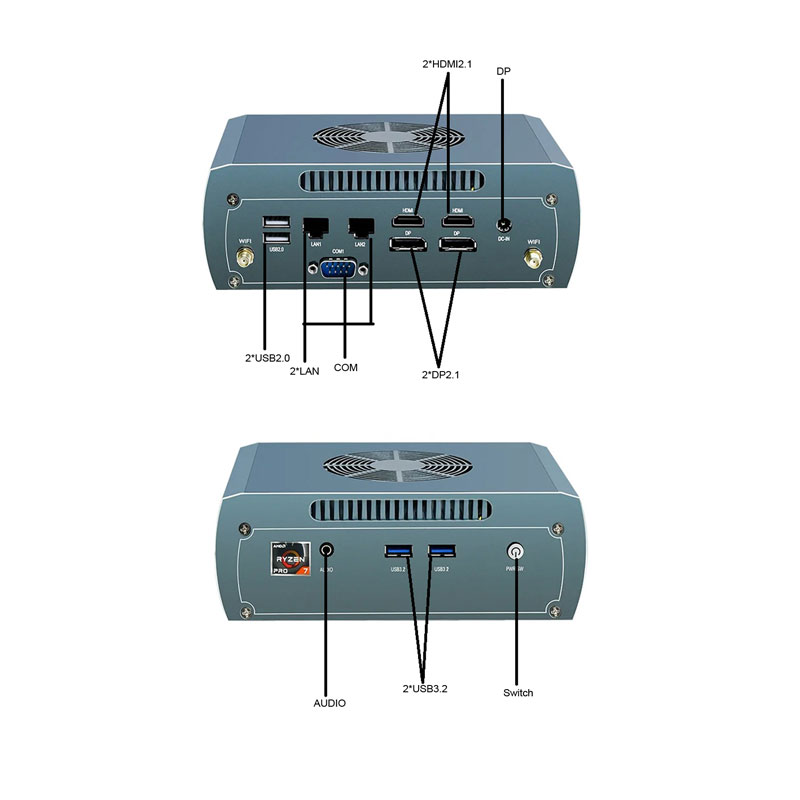

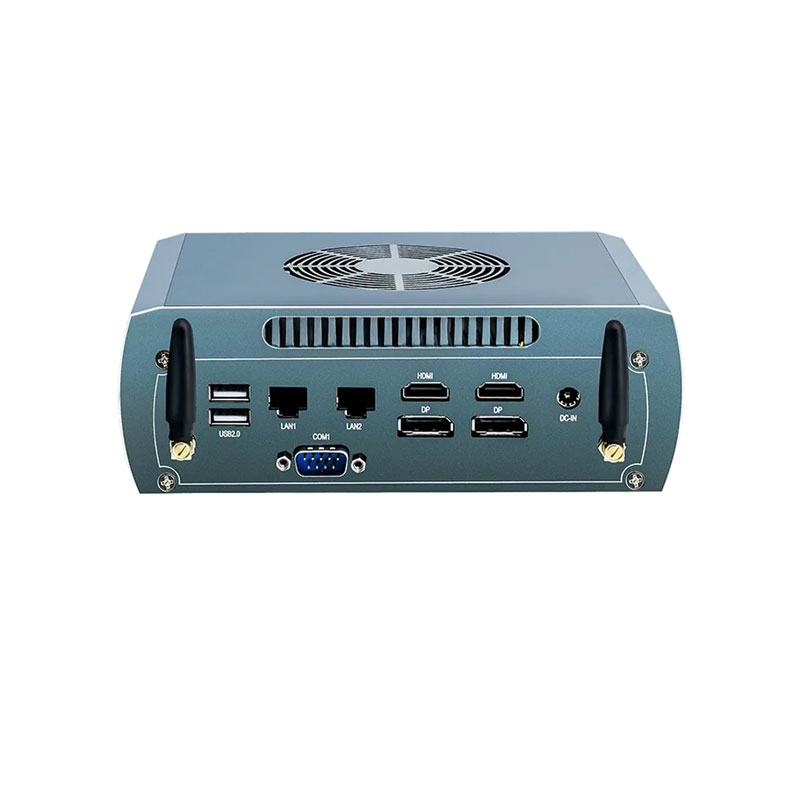

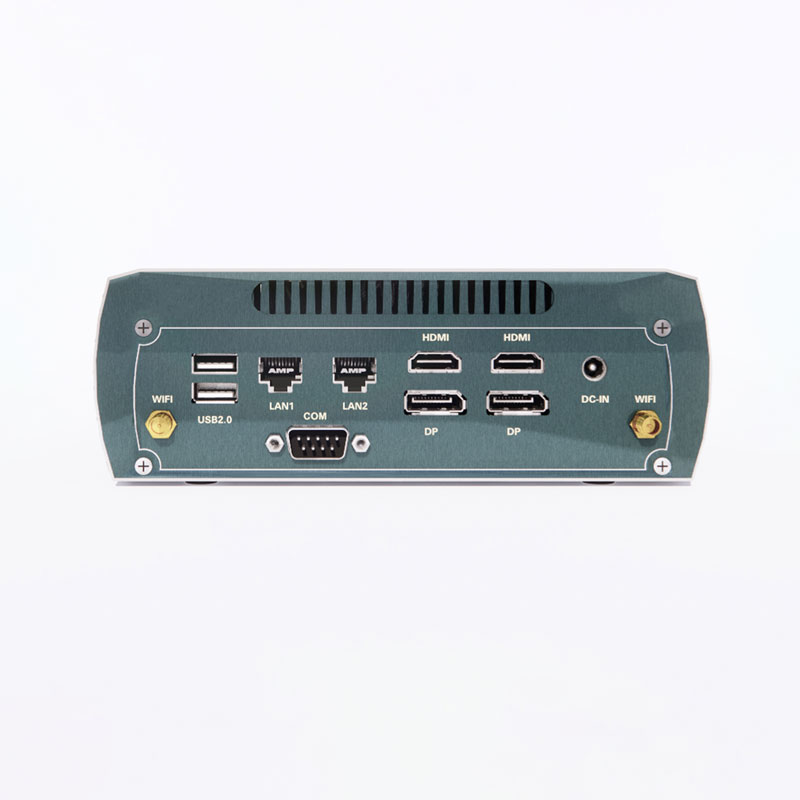

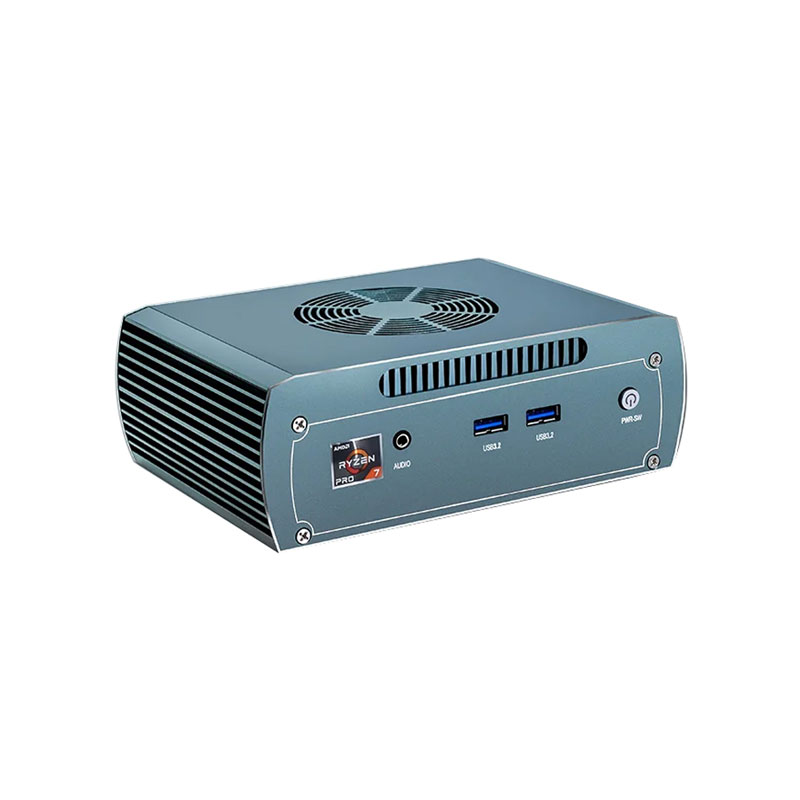

Switch: 1 x Power On/Off, Power: 1 x DC IN USB: 2 x USB3.2, 2 x USB2.0 Display: 2 x HDMI2.1, 2 x DP2.1 LAN: 2 x i226-V 2.5G LAN COM: 1 x DB9 COM RS232/RS485 Audio: 1 x Audio Jack |
Input: DC100-240V AC/50-60Hz Output: DC 12V-19V/4A-6.32A |
WIFI 6E 802.11ax; Bluetooth Version: 5.2. |
| Product Dimension | Other Features | What's in Box |
| Size: 180mm x 126.5mm x 62.5mm Weight: 1.5kg |
AMI EFI BIOS, Auto Power On, Wake on LAN, RTC, Watch dog, 8K@60Hz or 4K@120Hz, COM RS232/485 etc. | 1 x Mini PC, 1 x Power
Adapter, 1 x Power Cord, 1 x HDMI Cable, 1 x Screws Bag |
