| Description | CPU | GPU |
| Model Number: K10-B Type: Fan or Fanless Material: Aluminium Alloy Case |

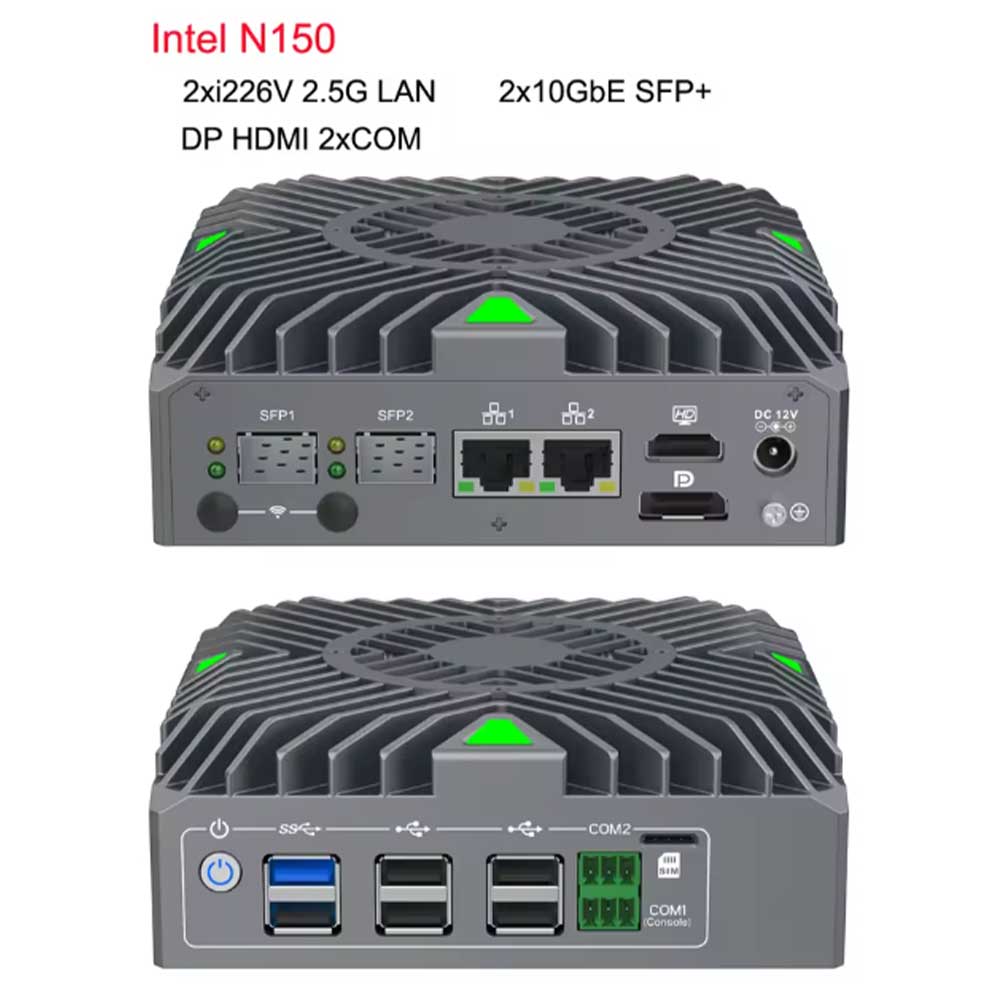

Onboard Intel Twin Lake N150 (4 Cores, 4 Threads, Max Turbo Frequency 3.6GHz, 6MB Smart Cache, 6W TDP) |
Intel Graphics; 1GHz Graphics Burst Frequency; Max Resolution (HD): 4096 x 2160@60Hz. |
| RAM Memory | SSD Storage | Network |
| 1 x DDR5 4800MHz SO-DIMM RAM Slot, support 16GB Max. | 1 x M.2 2280 SSD Slot, 1 x 2.5'' HDD Slot | 2 x Intel i226-V 100/1000/2500M LAN; 2 x 10GbE SFP+ Interface(Intel 82599). |
| Input/output port | Power & Working Environment | Expantion Slot |

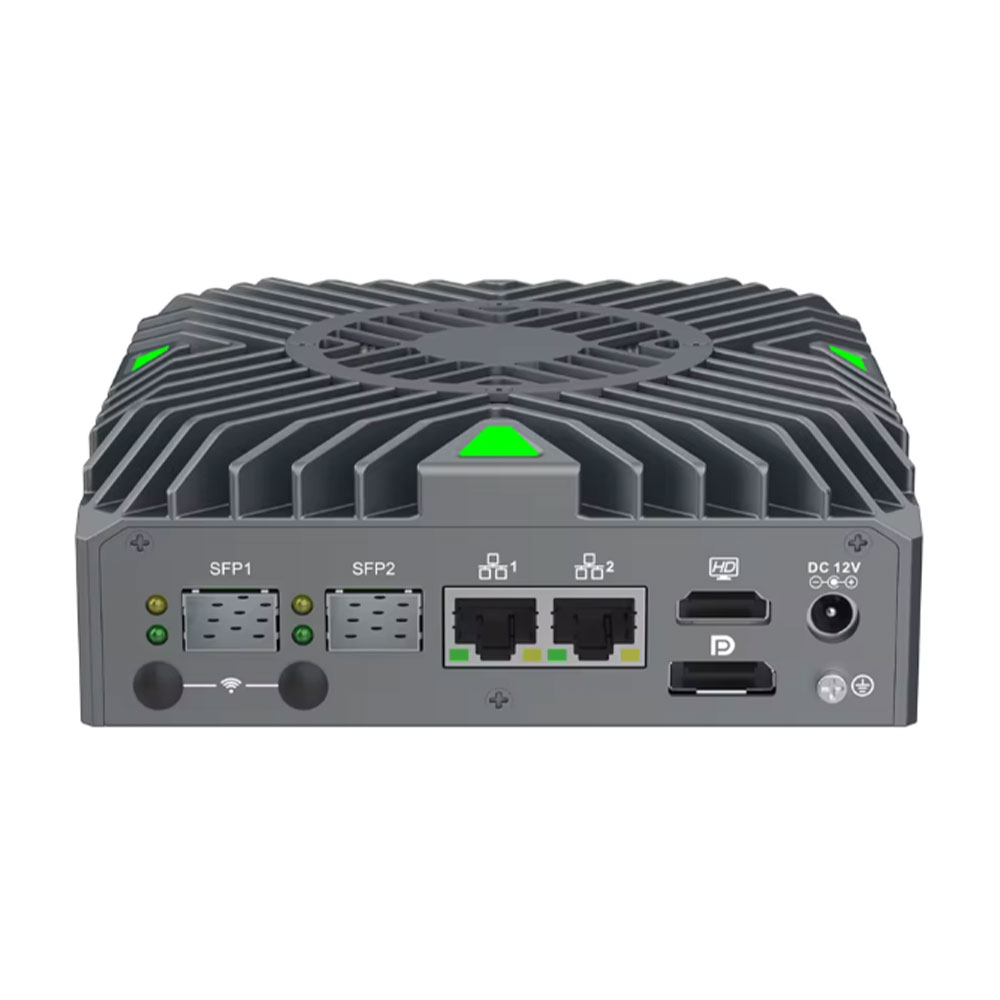

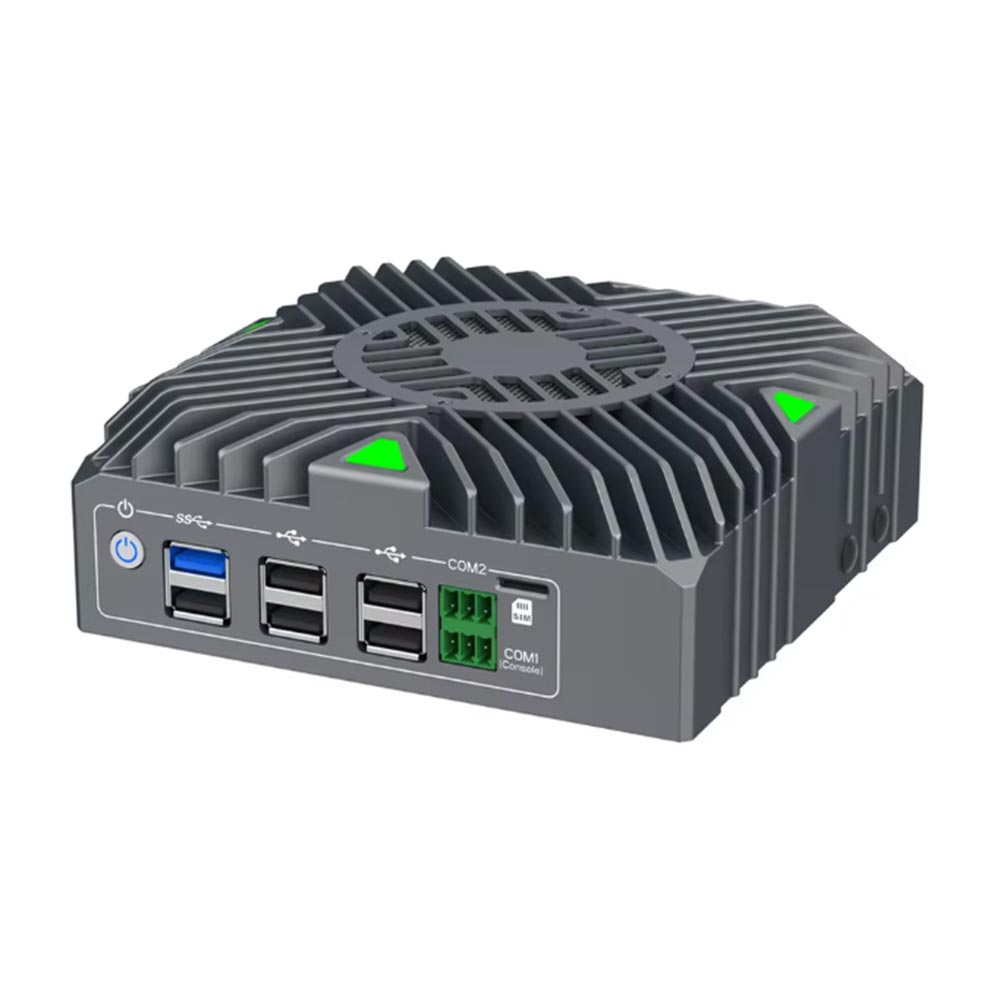

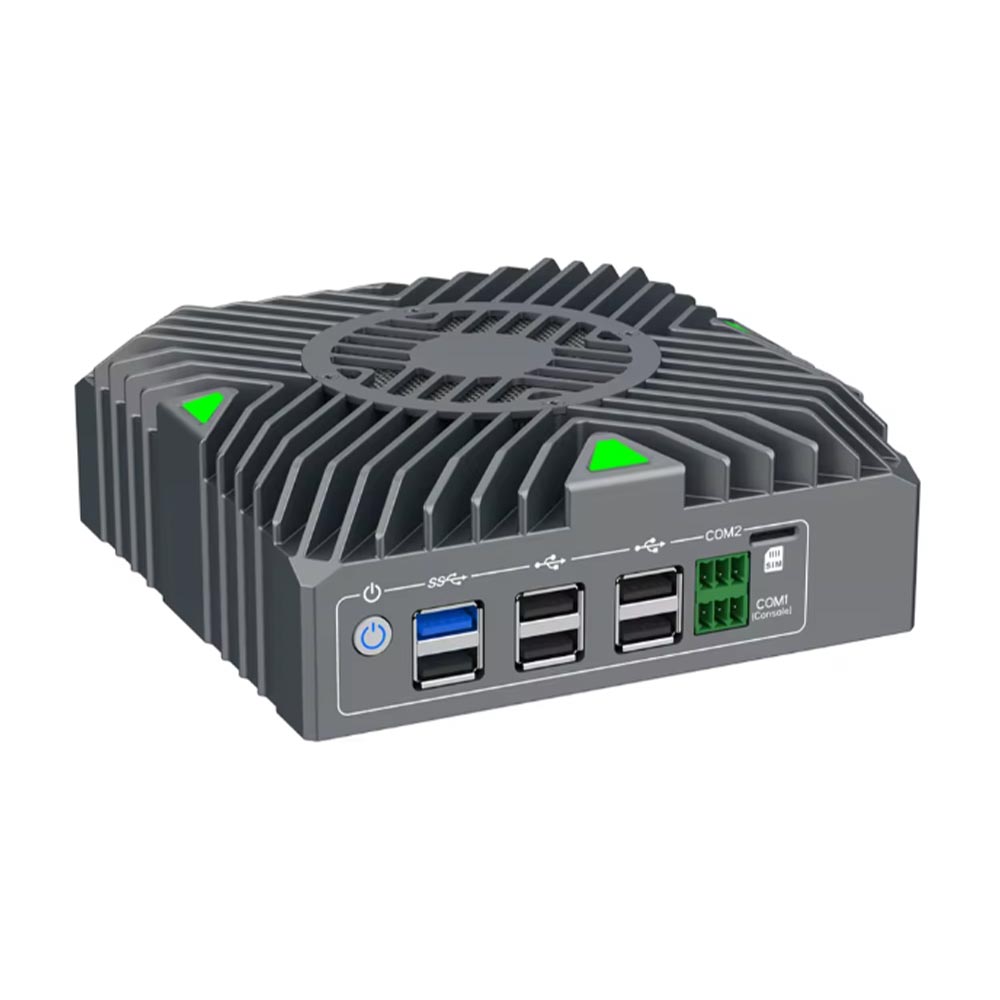

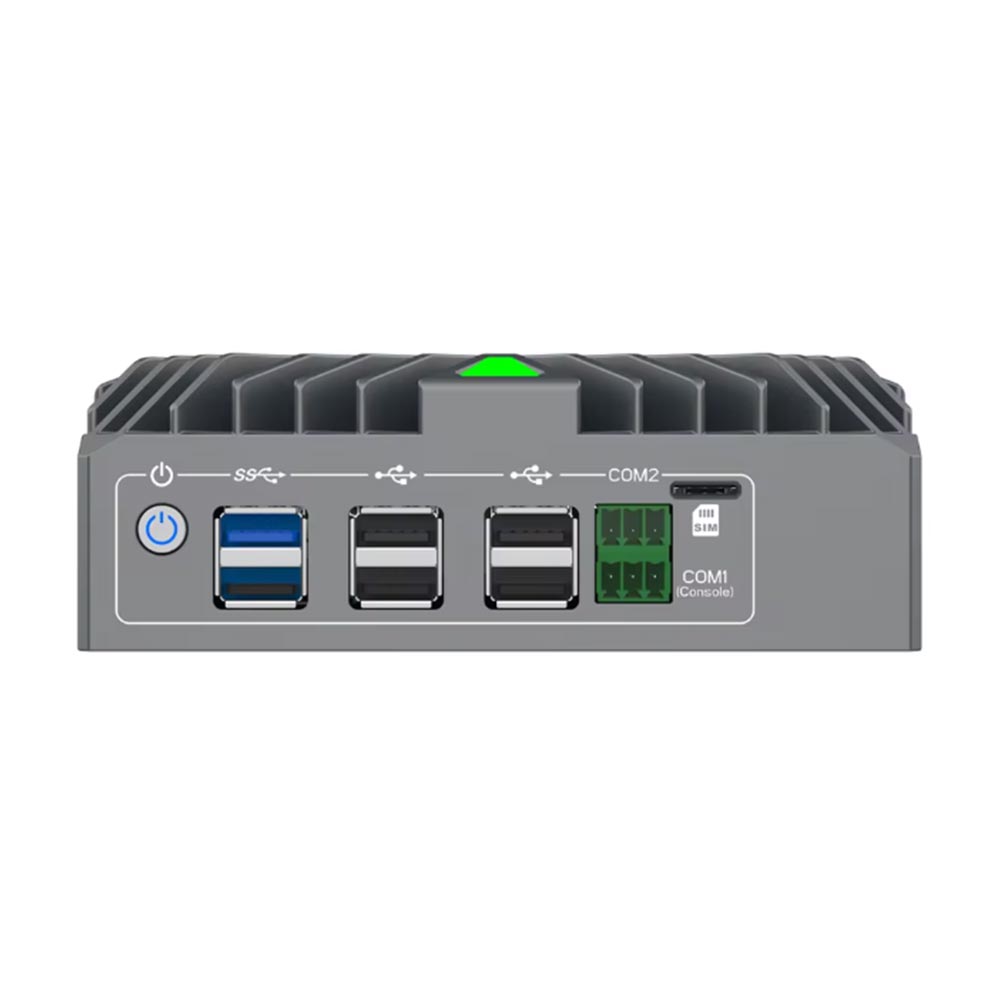

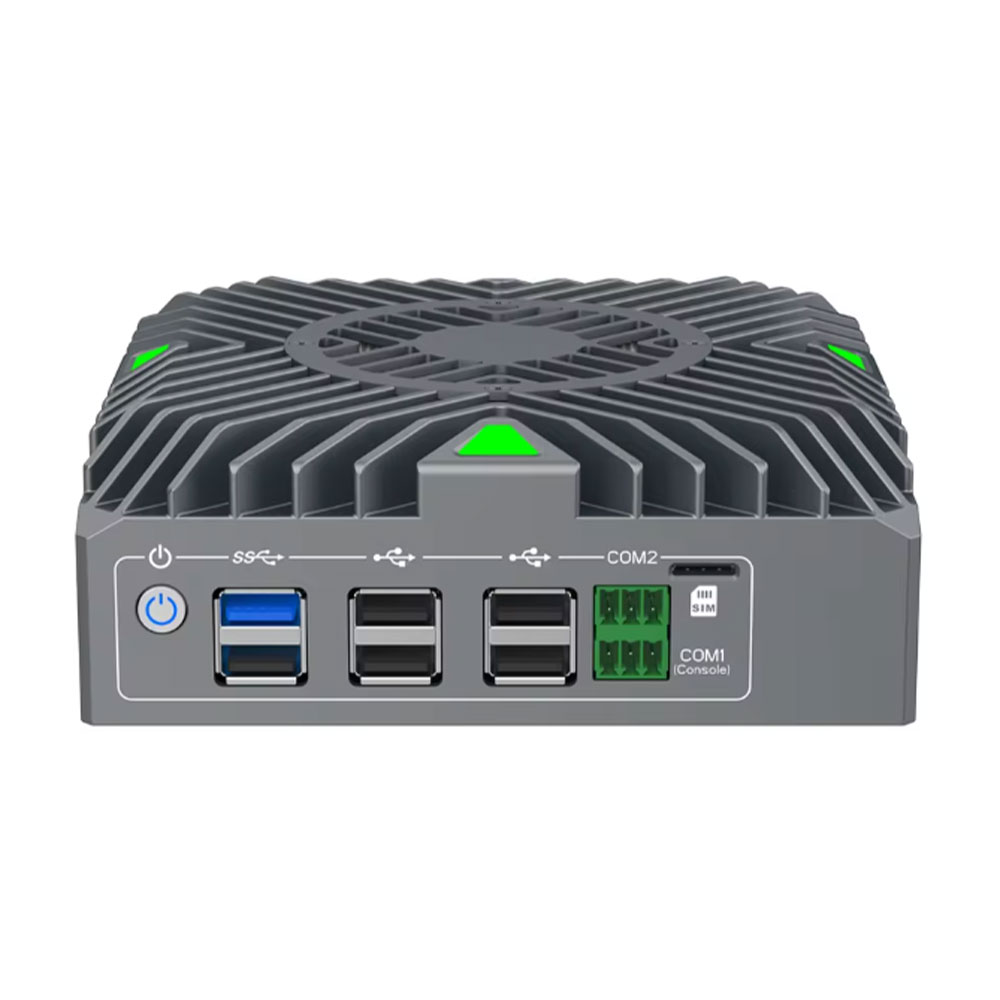

| Switch: 1 x Power On/Off, Power: 1 x DC IN USB: 1 x USB3.1, 5 x USB2.0 Display: 1 x HDMI, 1 x DP(4K@60Hz) LAN: 2 x i226-V LAN, 2 x SFP+ Interface(Intel 82599) COM: 2 x 3pin Phoenix terminal serial ports (RS232/485,com1 supports console) Other: 1 x Nano-SIM card Slot |
Input: DC100-240V AC/50-60Hz Output: DC 12V Operating Temperature: 0°C-40°C(commercial HDD), -20°C-50°C(industrial SSD), with surface air flow; Operating Humidity: 0%~95%(non-condensing) |
1. Supports 1xM.2 2280 M-Key Slot(SATA protocol & PCIe3.0x1 NVMe protocol) 2. Supports 1xM.2 2230 E-Key Slot(PCIe & USB protocol/CNVlo2 protocol) 3. Supports 1xM.2 3052 B-Key Slot(USB3.0 signal, supports 4G/5G), and a external Nano-SIM card Slot 4. Expandable interface(not icluded in standard shipment): 4-channel GPIO |
| Product Dimension | Features | What's in Box |
| Size: 135mm x 135mm x 48mm Weight: 0.8kg |
Power-on boot, Scheduled boot, PXE boot, Network wake-up, watchdog(0-255 levels), TPM 2.0 security encryption. |
1 x Mini PC, 1 x Power Adapter, 1 x Power Cord, 1 x HDMI Cable, 1 x Screws Bag |
