H10PRO
Product Information
Description CPU System Supported
Model Number: H10PRO
Type: with Fan
1. Intel N95
2. Intel N100
Windows 10 / Windows 11
RAM Memory SSD Storage Network
1 x DDR4 SO-DIMM RAM Slot(8G/16G) 1 x M.2 2280 SSD Slot, up to 1TB 1. Built-in 3G/4G module: 1 x Nano SIM(optional);
2. WIFI+BT 2-in-1 module: 2.4G+5G dual-band WIFI IEEE 802.11a/b/g/n/ax(AX201 WIFI6)+BT5.2.

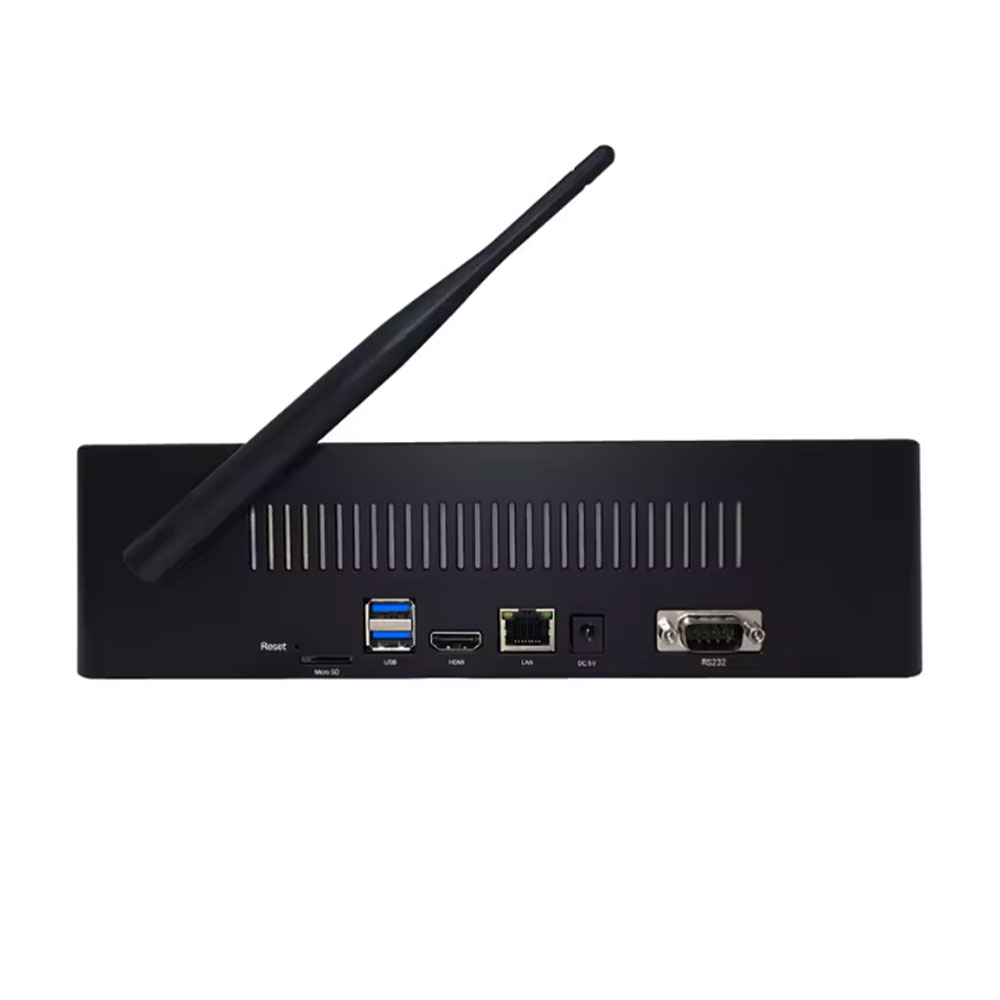

Input/output port Power Supply Touch Screen Display
Switch: 1 x Power On/Off
Power: 1 x 5.5mm*2.5mm DC IN
USB: 4 x USB3.0, 1 x USB 2.0
Display: 1 x HDMI
LAN: 1 x RJ45 1000M LAN
COM: 1 x COM RS232
Audio: 1 x 3.5mm Audio Interface
Others: 1 x TF Card Socket; 1 x Volume Up/Down Key

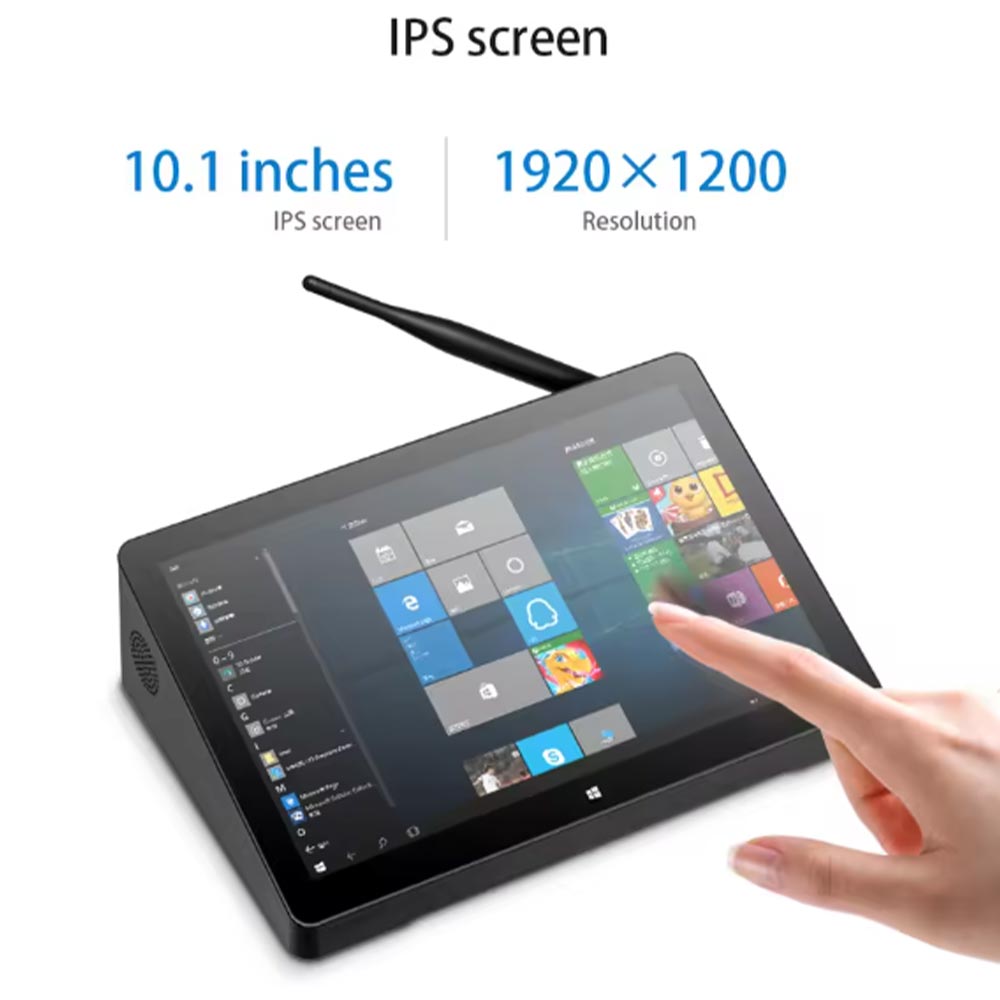

12V/2.4A/36W(Power port) 10.1-inch, 10-point touch(1920*1200 IPS)
Product Dimension Featured What's in Box
Size: 247mm x 162mm x 68mm
Weight: 0.8kg
1. TF & SIM 2-in-1 card slot;
2. Battery: 7.4V/5000mAh 5-6/H;
3. Dual speaker 4Ω 3W; built-in mic, sensitivity -38db.
1 x Mini PC, 1 x Power Cord, 1 x HDMI Cable, 1 x Screws Bag
Product Application
Desktop Computer Business Mini PC Office Mini PC School Mini PC Mini PC
